day7

Day 7: No space left on device

This one is more complicated. Going to start at the end of the description and work back.

OK, I did, but as I worked back I kept adding things to the core classes, so it doesn’t start as simple as I did.

We will need to: find all of the directories with a total size of at most 100,000, then calculate the sum of their total sizes. In the example above, these directories are a and e; the sum of their total sizes is 95,437 (94,853 + 584). (As in this example, this process can count files more than once!)

- a (dir)
    - e (dir)
      - i (file, size=584)
    - f (file, size=29116)
    - g (file, size=2557)
    - h.lst (file, size=62596)

Define classes

Base FileObj & File

Just names and sizes and __str__.

Code

from dataclasses import dataclass, field

@dataclass
class FileObj():
    """Base class for File & Directory. Has a name"""
    name: str   # Name of the file or dir.

@dataclass
class File(FileObj):
    """Files have name and size"""
    size: int   # Size of a file is given

    def __str__(me):
        return f"{me.name} (file, size={me.size})"

source

File

 File (name:str, size:int)

Files have name and size

source

FileObj

 FileObj (name:str)

Base class for File & Directory. Has a name

i = File("i", 584)
f = File("f", 29116)
g = File("g", 2557)
h = File("h.lst", size=62596)
files = [i, f, g, h]

assert f"{i}" == "i (file, size=584)"

Directory

Directories compute their .size from their members. This is naturally recursive. 😊

This started really simple & grew as I needed methods later. Now has:

parent so we can build path and know depth.
- Starts as None.
- Gets assigned when our parent adds us. (During __setitem__ now.)
- Helps __str__ get indents right
- Eliminates need to build separate list of dirs during input.
Provides [] getting and setting items in dir.
- Implementation changed from list to dict.
Added subdirs to get just the kids that are dirs.
Evicted a recursive version of that to a helper (below)

Alert

Initializing _kids: [] turns all Directory into Ender chests. Beware the default-mutable!

Alert

Solutions that worked in Example failed in Part 1 because (a) data has multiple dirs of same name (in different locations), & (b) I ran the solution on the wrong arg.

Doing (b) definitely caused a too-low error. I think it was (a) that caused the too-high error. But I didn’t find (b) until the end and by then fixing that fixed all.

Code

@dataclass
class Directory(FileObj):
    """Directories have kids (files or dirs), and PARENT"""
    parent: FileObj=None  # My parent dir. Set when I'm appended.
    _kids: dict[str: FileObj] = field(default_factory=dict)

    @property
    def size(me):
        """Dir size is sum of kids' sizes."""
        return sum(f.size for f in me._kids.values())

    @property
    def path(me) -> str:
        """The path/to/me/.  <- Note slash placement."""
        try:
            return f"{me.parent.path}{me.name}/"
        except AttributeError:
            return f"{me.name}/"

    @property
    def depth(me):
        """How far down the tree am me?"""
        return me.path.count("/") - me.path.count("//") - 1

    @property
    def subdirs(me):
        """My kids what could has kids. Not files."""
        return [x for x in me if isinstance(x, Directory)]

    def append(me, obj: FileObj) -> None:
        """Shortcut: just me.append(e) instead of me[e.name] = e."""
        me[obj.name] = obj

    def __str__(me):
        """Indent formatted for pretty-printing: whole tree below me."""
        indent = "  " * me.depth
        head = f"{me.name} (dir, size={me.size})"
        tail = f"\n".join(f"{indent} - {val}" for val in me)  # uses __iter__
        return f"{head}\n{tail}"

    def __iter__(me):
        """Return iterator of objects (not names!) in _kids."""
        return iter(me._kids.values())

    def __getitem__(me, name: str) -> FileObj:
        """Get member FileObj by name. Or die."""
        return me._kids[name]

    def __setitem__(me, name: str, arg: FileObj) -> None:
        """Add {name: arg} to _kids; if arg is dir, set arg.parent->me."""
        me._kids[name] = arg
        if isinstance(arg, Directory):
            if arg.parent is not None:
                raise(ValueError, "We are stealing someone else's kid!")
            arg.parent = me

source

Get all subdirs

This is basically a filtered depth-first traversal.

This used to return dir objects. Changed to (name, size) tuples while trying to track down Part1 error that turned out to be something else entirely. Could change back but, eh.

Code

def get_all_subdirs(start: Directory) -> list[Directory]:
    """Return flat list of (name, size) for _all_ dirs under `start` dir."""
    my_dirs = [(x.name, x.size) for x in start.subdirs]
    for _dir in start.subdirs:
        my_dirs.extend(get_all_subdirs(_dir))
    return my_dirs

source

get_all_subdirs

 get_all_subdirs (start:__main__.Directory)

Return flat list of (name, size) for all dirs under start dir.

get_all_subdirs(root)

[('a', 66249), ('e', 584), ('k', 0)]

assert [x[0] for x in get_all_subdirs(root)] == ['a', 'e', 'k']

OK, looks good! Now need to read the data.

Example

example = """
$ cd /
$ ls
dir a
14848514 b.txt
8504156 c.dat
dir d
$ cd a
$ ls
dir e
29116 f
2557 g
62596 h.lst
$ cd e
$ ls
584 i
$ cd ..
$ cd ..
$ cd d
$ ls
4060174 j
8033020 d.log
5626152 d.ext
7214296 k
""".strip().split("\n")

Parse the dirs

Code

def get_dirs(commands: list[str]) -> Directory:
    """Create dir tree from '/'. Return all dirs"""
    root = Directory("/")
    dirstack = [root]

    for i, line in enumerate(commands):
        cur_dir = dirstack[-1]
        match line.split():
            case ("$", "ls"):
                continue
            case ("dir", dirname):
                try:
                    cur_dir[dirname]  # Should fail, unless twice ls same dir
                    print("*********** {dirname} already in {cur_dir.name}!")
                except KeyError:
                    cur_dir.append(Directory(dirname))
            case ("$", "cd", dirname):
                match dirname:
                    case "/":
                        dirstack = [root]
                    case "..":
                        dirstack.pop()
                    case _:
                        dirstack.append(cur_dir[dirname])
                depth = len(dirstack) - 1
                print(f'{"❚" * depth}\tfrom cd {dirname}\t in line {i}')
            case (size, name):
                f = File(name, int(size))
                cur_dir.append(f)
            case _:
                raise ValueError(f"Unrecognized line: '{line}'")
    return root

dirs = get_dirs(example)

    from cd /    in line 0
❚   from cd a    in line 6
❚❚  from cd e    in line 12
❚   from cd ..   in line 15
    from cd ..   in line 16
❚   from cd d    in line 17

source

get_dirs

 get_dirs (commands:list[str])

Create dir tree from ‘/’. Return all dirs

## Test the parsing

print(dirs)
assert len(str(dirs).split("\n")) == 14

/ (dir, size=48381165)
 - a (dir, size=94853)
   - e (dir, size=584)
     - i (file, size=584)
   - f (file, size=29116)
   - g (file, size=2557)
   - h.lst (file, size=62596)
 - b.txt (file, size=14848514)
 - c.dat (file, size=8504156)
 - d (dir, size=24933642)
   - j (file, size=4060174)
   - d.log (file, size=8033020)
   - d.ext (file, size=5626152)
   - k (file, size=7214296)

We’re told: > The total size of directory e is 584 because it contains a single file i of size 584 and no other directories. The directory a has total size 94853 because it contains files f (size 29116), g (size 2557), and h.lst (size 62596), plus file i indirectly (a contains e which contains i). Directory d has total size 24933642. As the outermost directory, / contains every file. Its total size is 48381165, the sum of the size of every file.

assert dirs['a']['e'].size == 584
assert dirs['a'].size == 94853
assert dirs['d'].size == 24933642
assert dirs.size == 48381165

ToDo Special case dirs["/"] to get self?

With total size ≤ 100K

Goal: > To begin, find all of the directories with a total size of at most 100,000, then calculate the sum of their total sizes. In the example above, these directories are a and e; the sum of their total sizes is 95,437 (94,853 + 584). (As in this example, this process can count files more than once!)

The code below would be clearer if get_all_subdirs returned objects instead of (name, size) tuples.

Code

def sum_cutoff(start: Directory, cutoff=100_000) -> int:
    """Return sum of sizes for dirs with size < cutoff."""
    subdirs = get_all_subdirs(start)
    sizes = [x[1] for x in subdirs if x[1] < 100_000]
    return sum(x for x in sizes if x <= cutoff)

source

sum_cutoff

 sum_cutoff (start:__main__.Directory, cutoff=100000)

Return sum of sizes for dirs with size < cutoff.

assert sum_cutoff(dirs) == 95437

Part 1

Get the data

with open(f"data/{NAME}_input.txt") as f:
    data = f.read()
data = data.strip().split("\n")

Examine the data - because it broke code that worked on the example.

print(f"Data has {len(data)} commands. First few:")
print("\n".join(x for x in data[:10]))
lines_with_dir = [x for x in data if x.startswith('dir')]
print(f"There are {len(lines_with_dir)} lines with 'dir'.")

Data has 1014 commands. First few:
$ cd /
$ ls
dir blgtdv
dir dbrfcz
dir fvspj
dir hbjmndt
dir hzg
dir jpjgdm
dir mtd
dir pcpf
There are 182 lines with 'dir'.

Note that names get reused!

fvspj = [row for row in data if "cd fvspj" in row]
fvspj2 = [row for row in data if "dir fvspj" in row]
print(f"There are {len(fvspj)} rows with 'cd fvspj'!")
print(f"There are {len(fvspj2)} rows with 'dir fvspj'!")

There are 13 rows with 'cd fvspj'!
There are 13 rows with 'dir fvspj'!

Run

Run `get_dirs` and check

part1_tree = get_dirs(data)

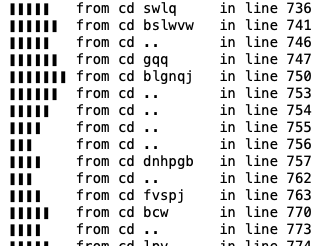

Screenshot from output:

print(part1_tree)

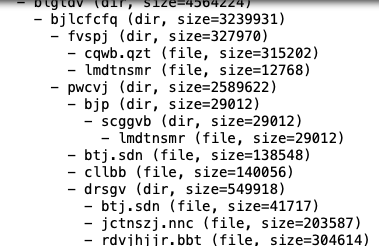

Screenshot from output:

Run `get_all_subdirs` and `sum_cutoff`

part1_subdirs = get_all_subdirs(part1_tree)
data_dirs = [x for x in data if x.startswith("$ cd") and not x.endswith("..")]
n_getall = len(part1_subdirs)
f"{n_getall} from get_all_subdirs; {len(data)} commands, of which {len(data_dirs)} cd to dir."

'182 from get_all_subdirs; 1014 commands, of which 183 cd to dir.'

assert n_getall <= len(data_dirs)
assert len(data_dirs) < len(data)

Answer!

sum_cutoff(part1_tree)

Correct answer for Part1: 1,667,443.

Guess 1: 66833 -> Too low
Guess 2: 214,201,382 -> Too high Oh gosh yes, it’s larger than size of /!

D’oh! While some cleanups of the classes and functions no doubt helped, the core problem was:

sum_cutoff(root)

Rather than

sum_cutoff(part1_tree)

Copy/paste error: “root” was the example.

Part 2

The total disk space on the file system is 70_000_000.

To run the update, you need unused space of at least 30_000_000.

Find the smallest directory that, if deleted, would free up enough space on the filesystem to run the update. What is the total size of that directory?

disk_space = 70_000_000
required = 30_000_000
used = part1_tree.size
free = disk_space - used
needed = required - free
print(f"{needed:,} needed")

7,870,454 needed

candidates = [x for x in part1_subdirs if x[1] > needed]
candidates

[('jpjgdm', 30324496),
 ('tgrplmn', 13900160),
 ('lpv', 12331326),
 ('bjlcfcfq', 8998590)]

min(candidates, key=lambda x: x[1])

('bjlcfcfq', 8998590)

Well that was straightforward once I had Part 1!
